SUMMIT | SKU:
AR5BIF
$565.12 off

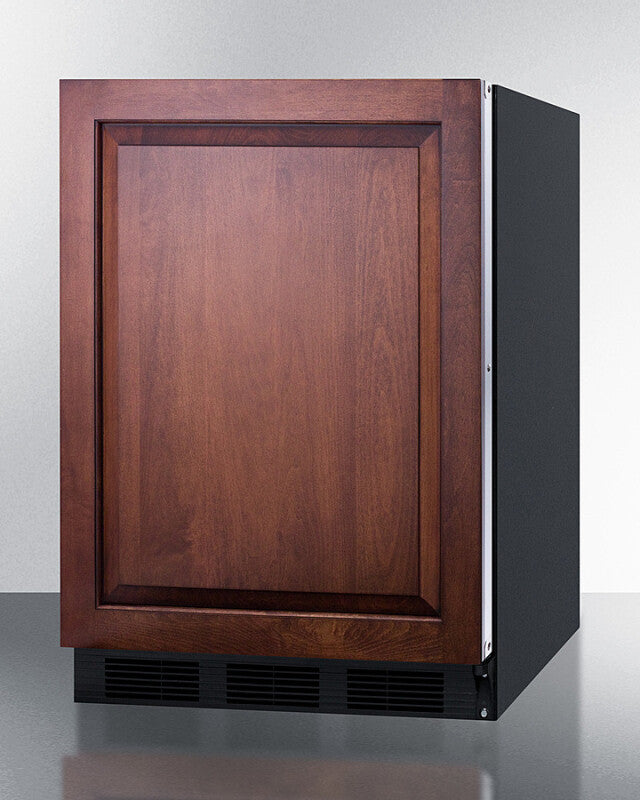

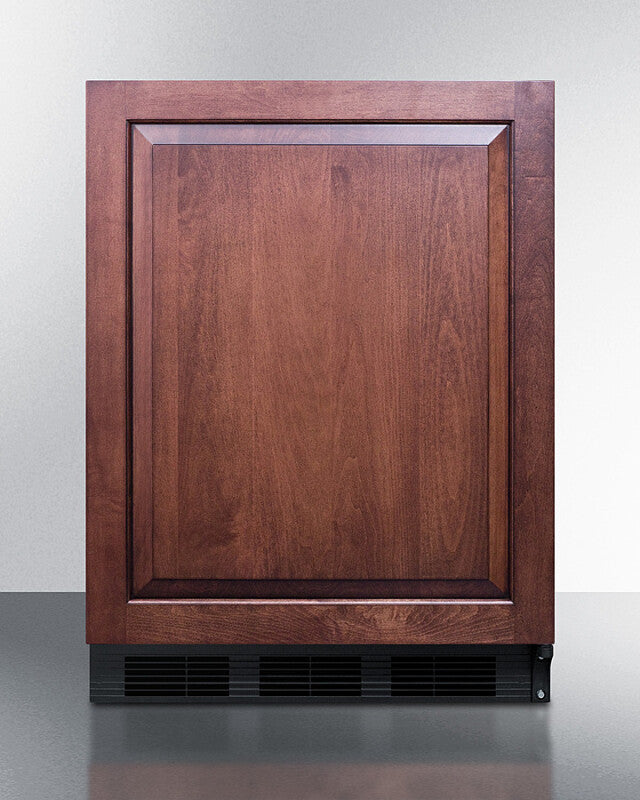

24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included) - (AR5BIF)
$1,255.83
$1,820.95
Unit price
/
Unavailable
24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included) - (AR5BIF) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
24" Wide Built-in All-refrigerator, ADA Compliant (panel Not I...
$1,255.83
$1,820.95
Unit price
/
Unavailable
About Product
Features
24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included)
Features
- 32" height to fit under lower ADA compliant counters
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Reduced maintenance with auto defrost system

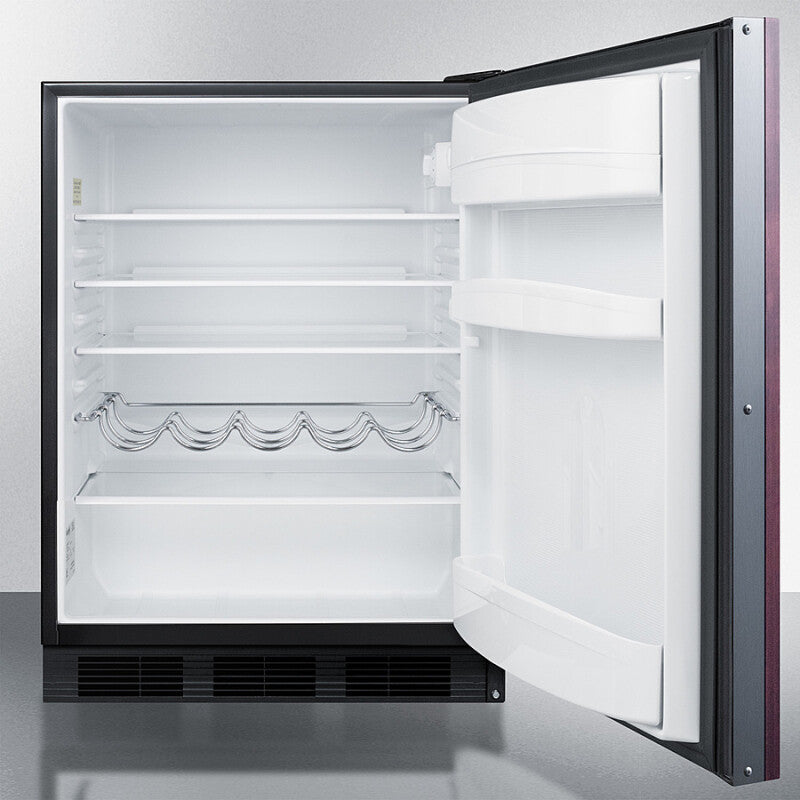

- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Automatically illuminates when you open the door
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior

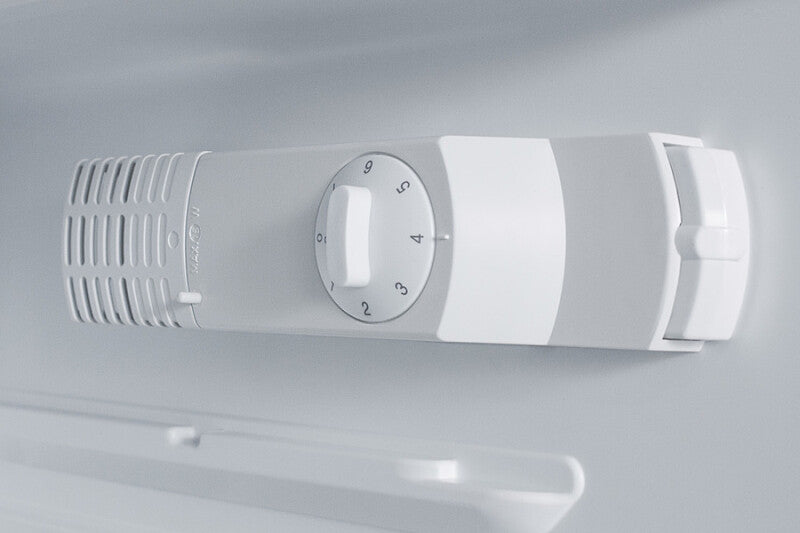

- Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068787 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
