VENTAHOOD | SKU:
M28PSLDSS
$356.50 off

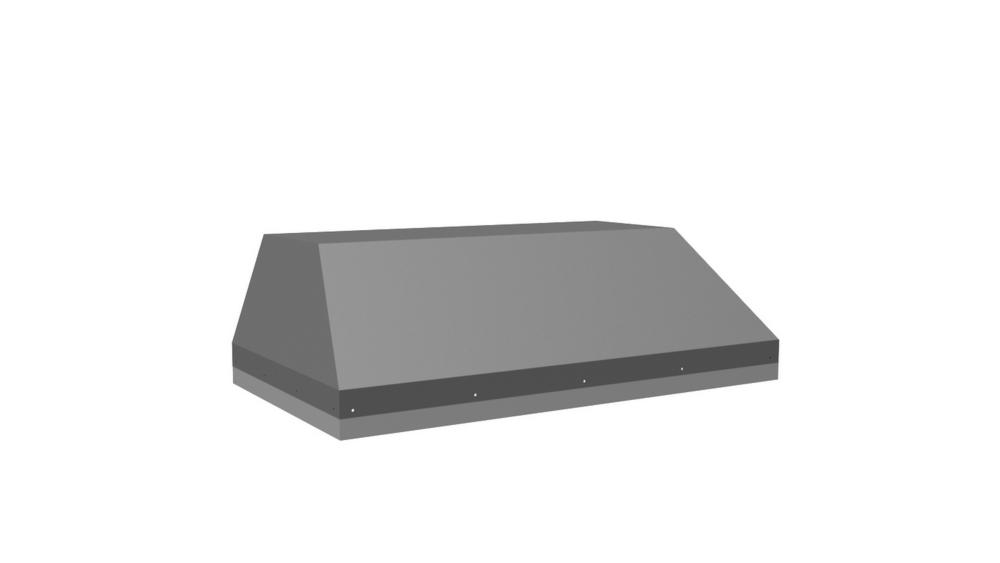

28 3/8" M Series Wall Mount Liner Insert Stainless Steel - (M28PSLDSS)
$713.00
$1,069.50
Unit price
/
Unavailable
Shipping calculated at checkout.
28 3/8" M Series Wall Mount Liner Insert Stainless Steel - (M28PSLDSS) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
28 3/8" M Series Wall Mount Liner Insert Stainless Steel - (M2...
$713.00
$1,069.50
Unit price
/
Unavailable
About Product
28 3/8" M Series Wall Mount Liner Insert Stainless Steel
Features
- Quietest at all speeds
- Easiest to Clean
- Patented Filterless Design
- Inherently Fire Safe
- 1 Year Warranty
- SensaSource(R) heat detection
| WIDTH : | 28 3/8" |
| DEPTH : | 22 1/2" |
| HEIGHT : | 12 1/2" |
| CFM : | (Chart A) |
| SONES : | N/A |
| Amps : | (Chart B) |
| Num. Lights : | 2 |
| (Chart A) Electrical/Mechanical Specifications For Blower Unit | |
| Model | M600 Single |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM SP@0.0" | 630 |
| CFM SP@0.1" | 625 |
| CFM SP@0.25" | 615 |
| CFM SP@0.5" | 600 |
| CFM SP@0.75" | 580 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M600 w/WHM300 Harness |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM SP@0.0" | 302 |
| CFM SP@0.1" | 300 |
| CFM SP@0.25" | 295 |
| CFM SP@0.5" | 288 |
| CFM SP@0.75" | 278 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M1200 Dual |
| Volts | 115 |
| Amps* | 10.0 |
| Hz | 60 |
| CFM SP@0.0" | 1035 |
| CFM SP@0.1" | 1015 |
| CFM SP@0.25" | 1000 |
| CFM SP@0.5" | 995 |
| CFM SP@0.75" | 915 |
| Min. Round Duct Size | 10" (79in.^2) |
