SUMMIT | SKU:
ASDW2412
$634.12 off

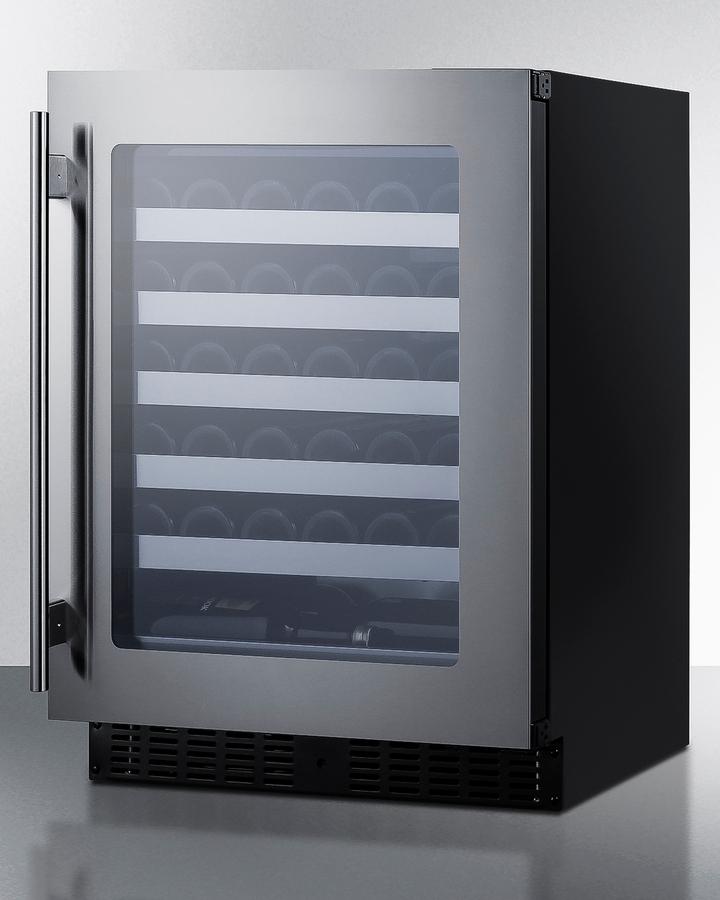

24" Wide Built-in Wine Cellar, ADA Compliant - (ASDW2412)
$1,585.30
$2,219.42
Unit price
/
Unavailable
Shipping calculated at checkout.
24" Wide Built-in Wine Cellar, ADA Compliant - (ASDW2412) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
About Product

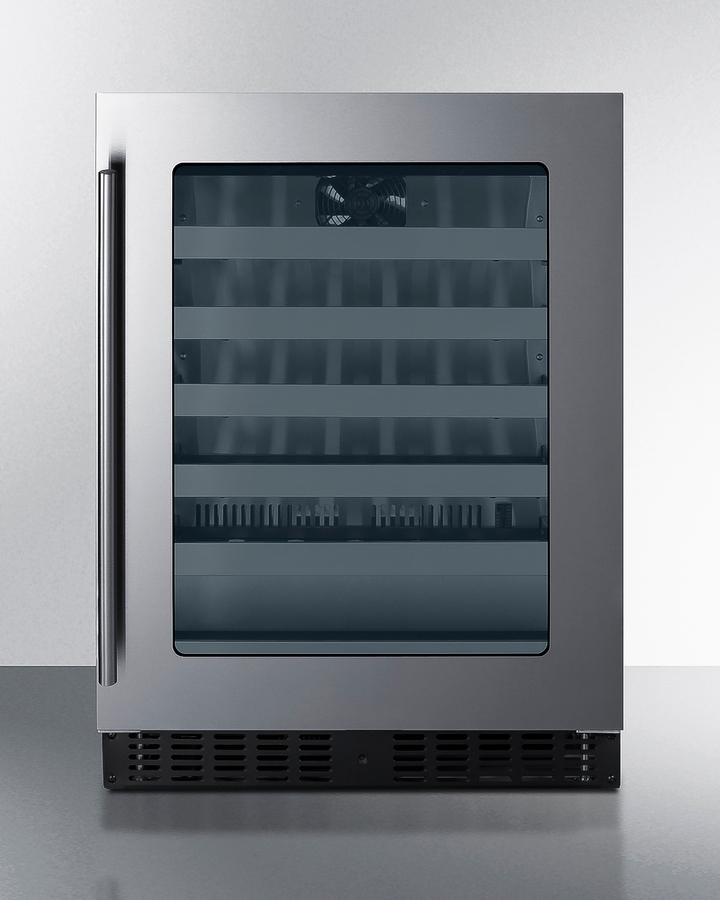

24" Wide Built-in Wine Cellar, ADA Compliant
Features
- Single zone wine cooler for residential or commercial cold storage

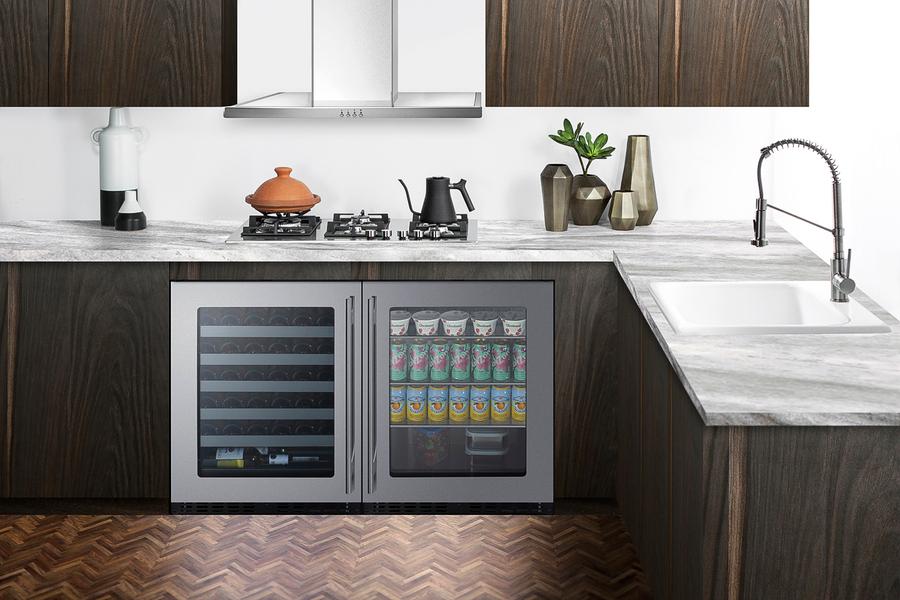

- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- 32" height allows easy installation under lower ADA compliant counters
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Elegant design offers a clear but protected view of your interior

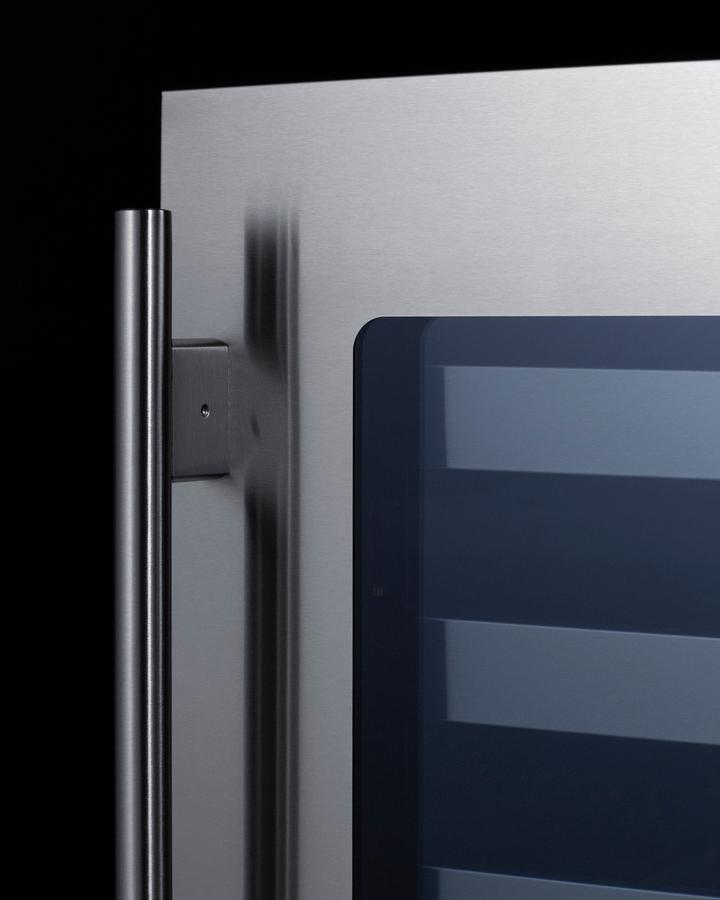

- Glass is framed by with a flush one-piece stainless steel trim for an elevated look
- Keyed lock for a secure interior (2 keys included)
- Stainless steel handle completes the look

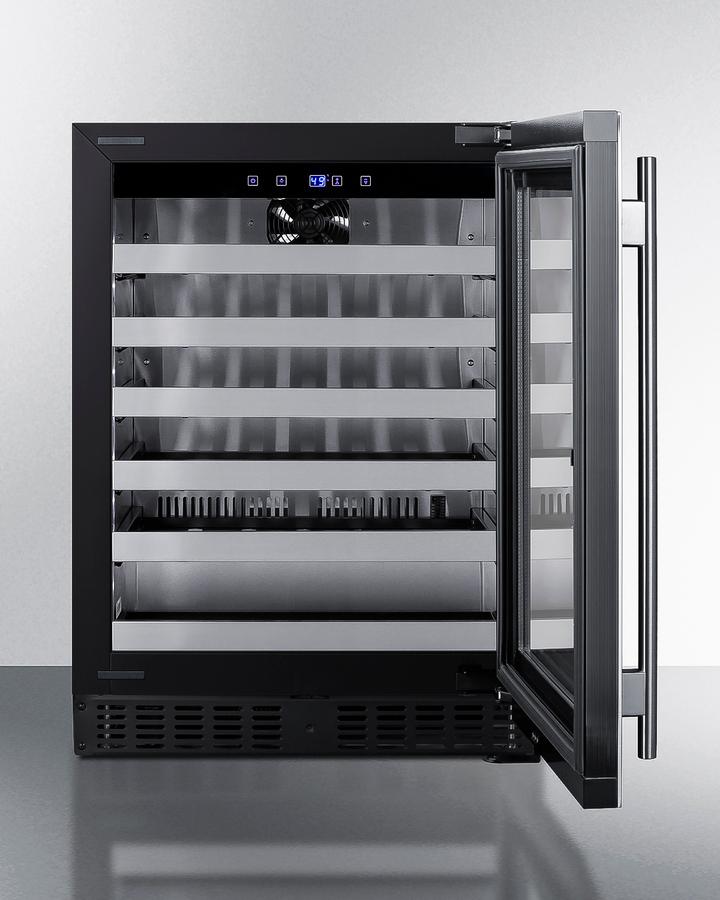

- Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

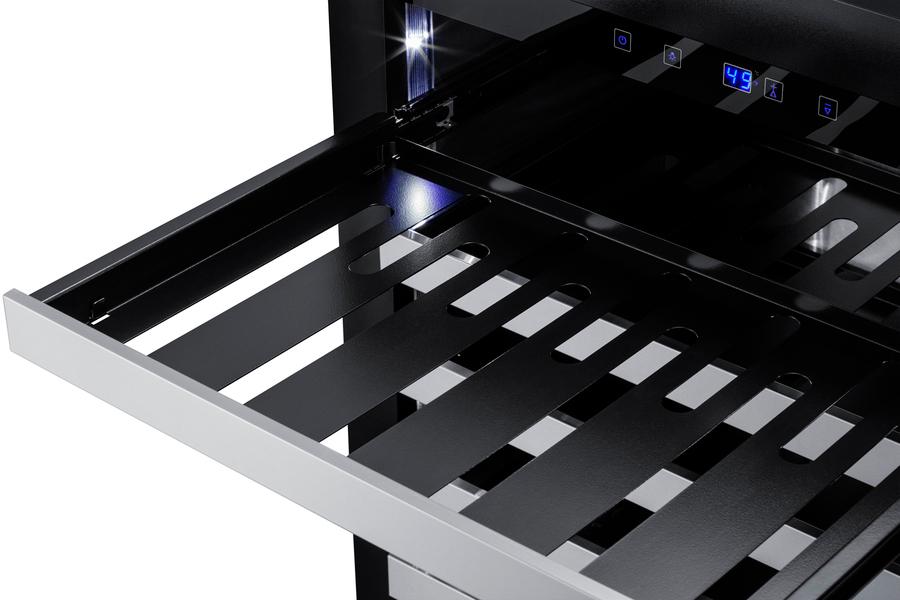

- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

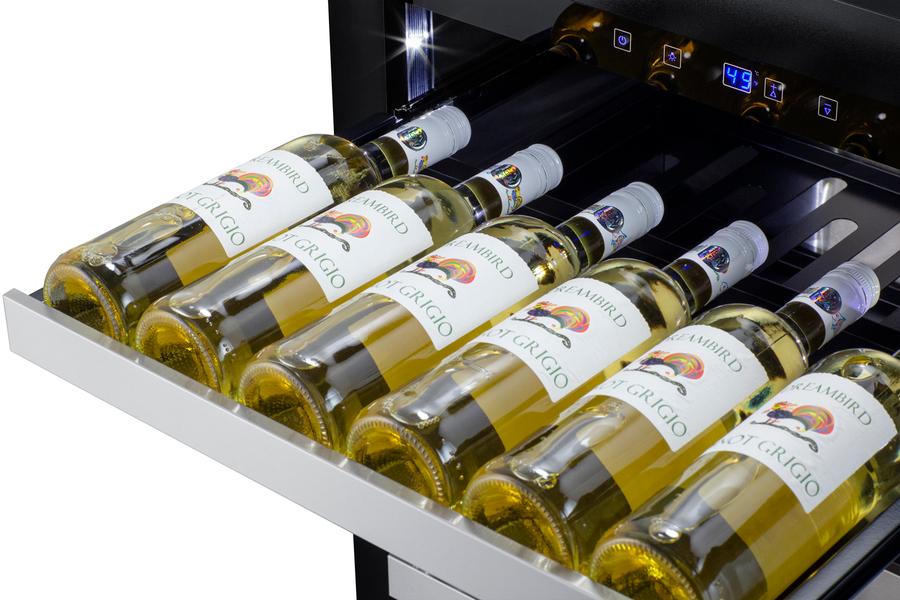

- Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

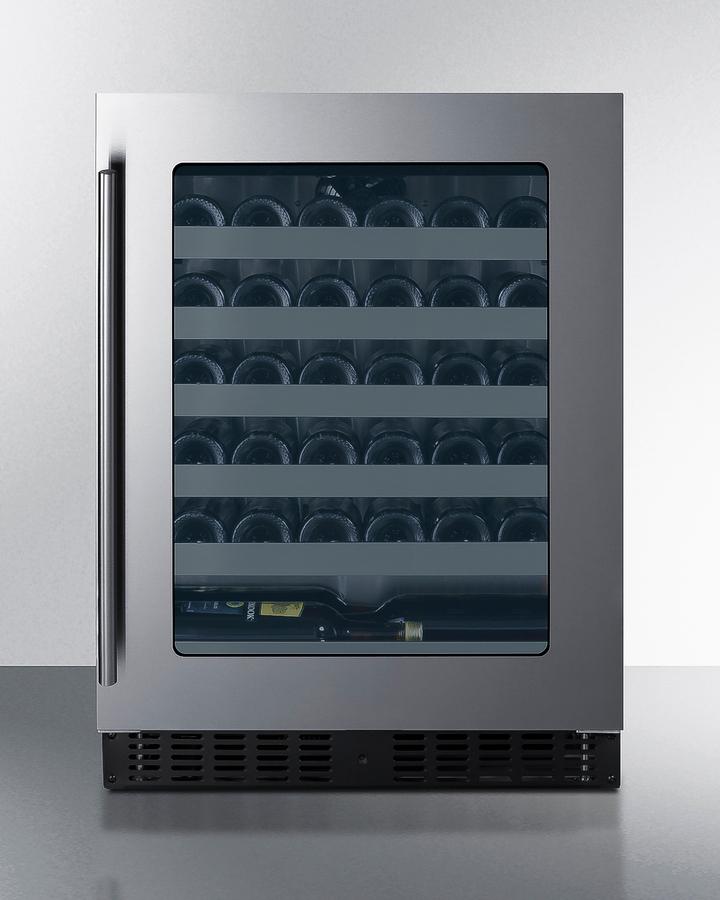

- 33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
- No-frost operation for minimum user maintenance
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils that offers easier cleanability

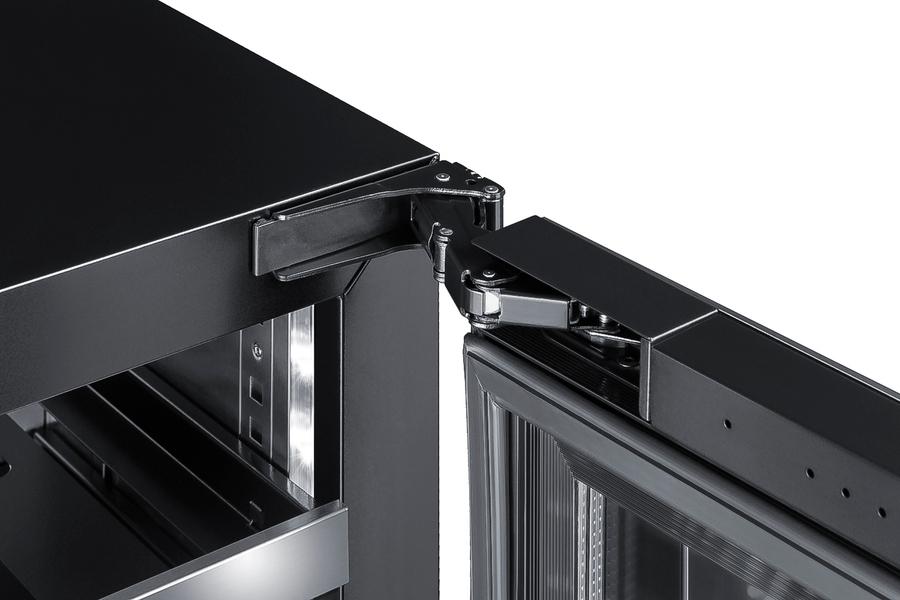

- Flat hinge ensures no added height is needed when installing under a counter
- User-reversible door swing for added flexibility
- Allows the unit to be used freestanding
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

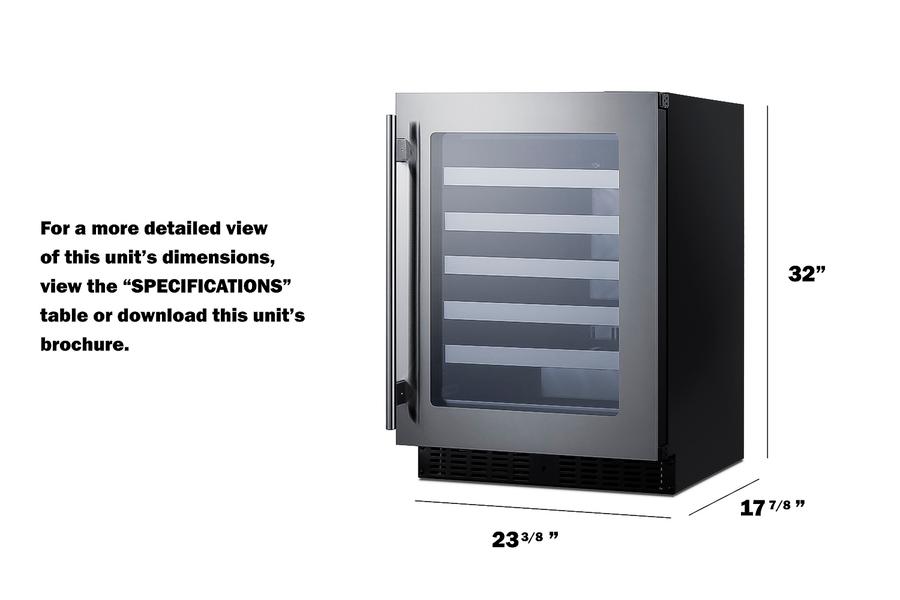

Overview | |
Height of Cabinet | 32.0" (81 cm) |
Width | 23.38" (59 cm) |
Depth | 17.75" (45 cm) |
Depth with Handle | 19.63" (50 cm) |
Depth with door at 90° | 39.88" (101 cm) |
Capacity | 3.25 cu.ft. (92 L) |
Defrost Type | Frost-Free |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101079462 |
Wine Cellar | |
Number of Zones | 1 |
Door Swing | RHD |
Reversible | Yes |
Height Adjustable | Yes |
Adjustable Shelves | Yes |
Shelf Type | Steel |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.38 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Interior Height 1 | 24.25" (62 cm) |
Interior Width 1 | 19.5" (50 cm) |
Interior Depth 1 | 12.25" (31 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 19.5" (50 cm) |
Compressor Step Depth | 4.5" (11 cm) |
Level Legs | 4 |
Temperature Range | 41 to 64 F |
Sabbath Mode | Yes |
