GE APPLIANCES | SKU:
JP5036SJSS
$156.00 off

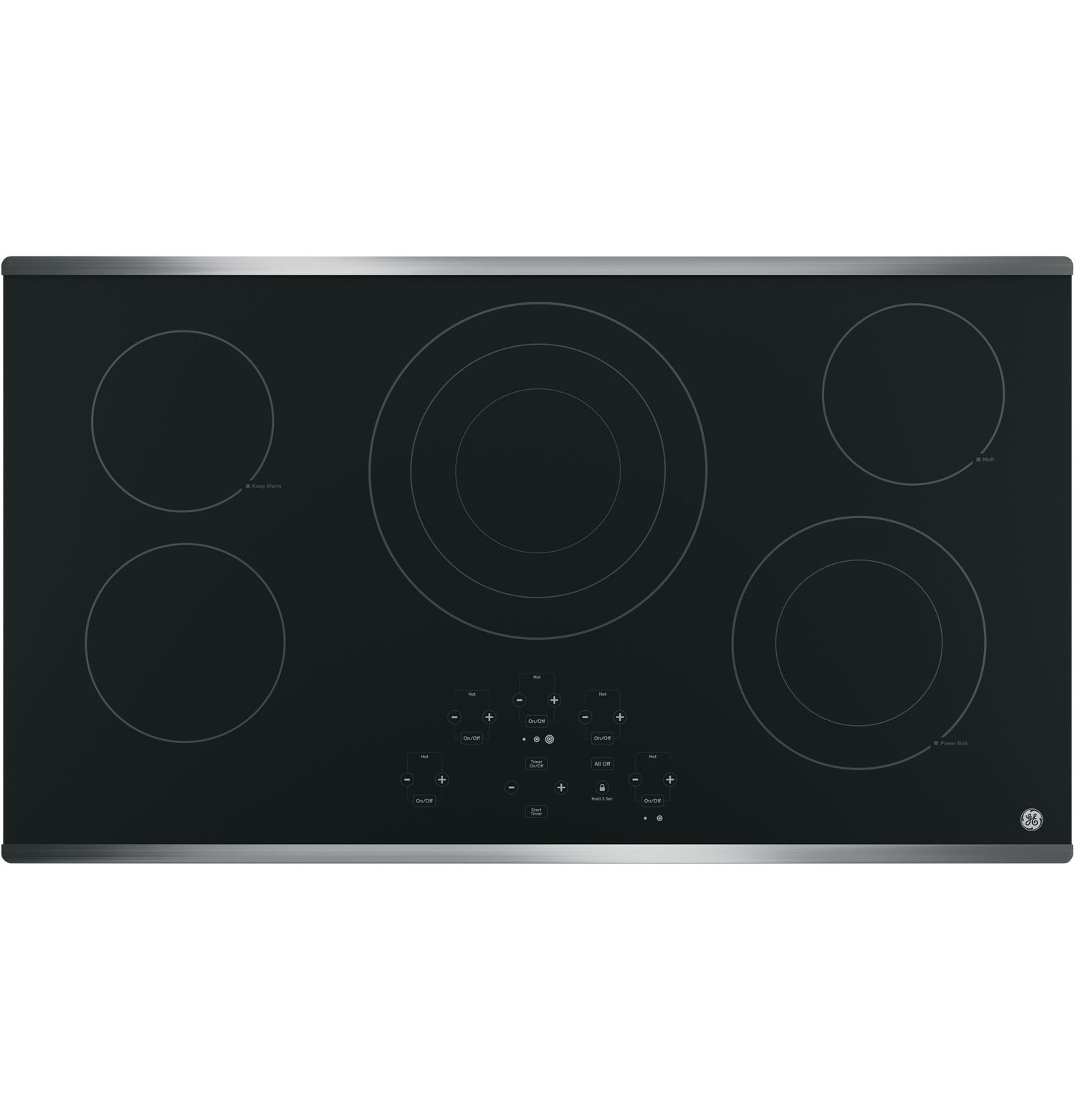

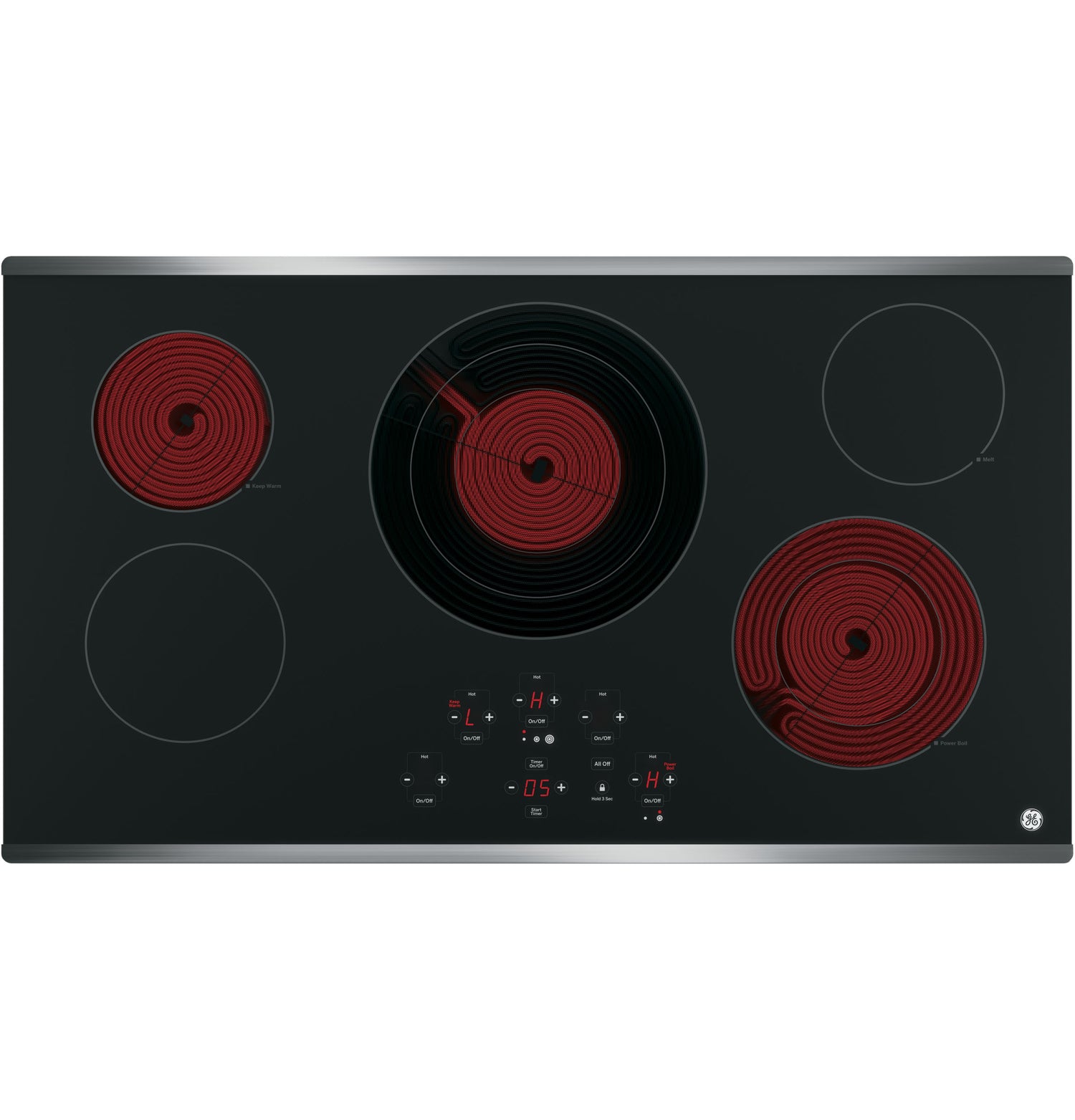

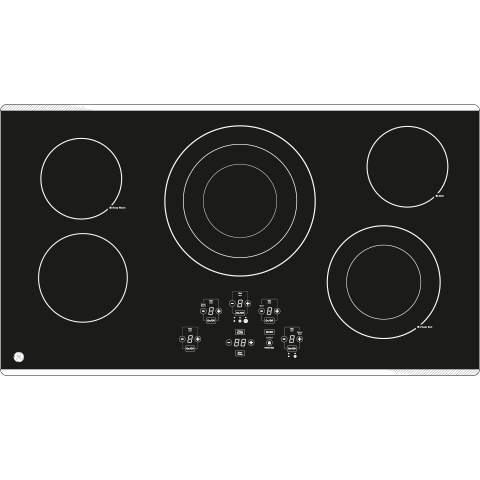

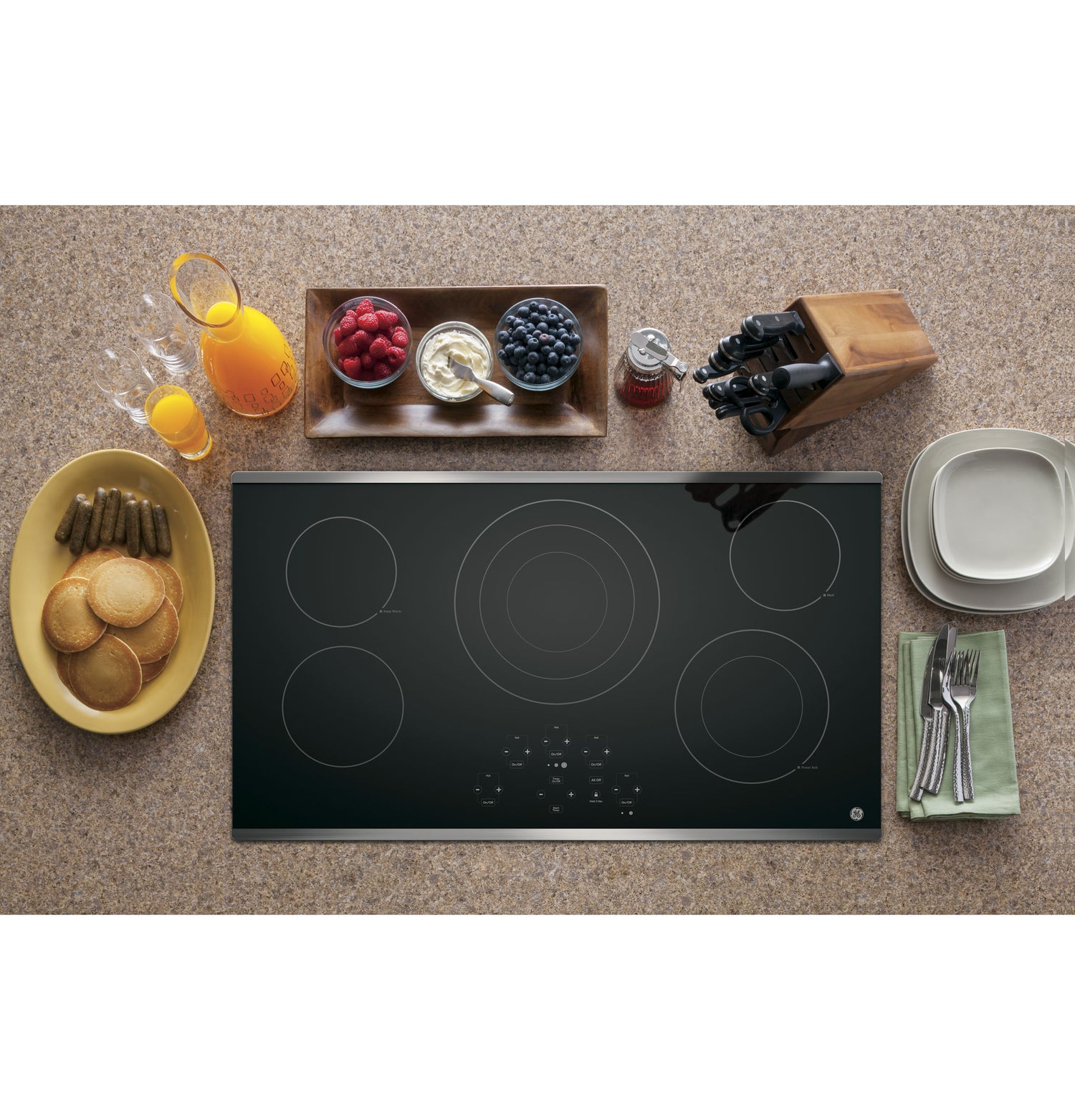

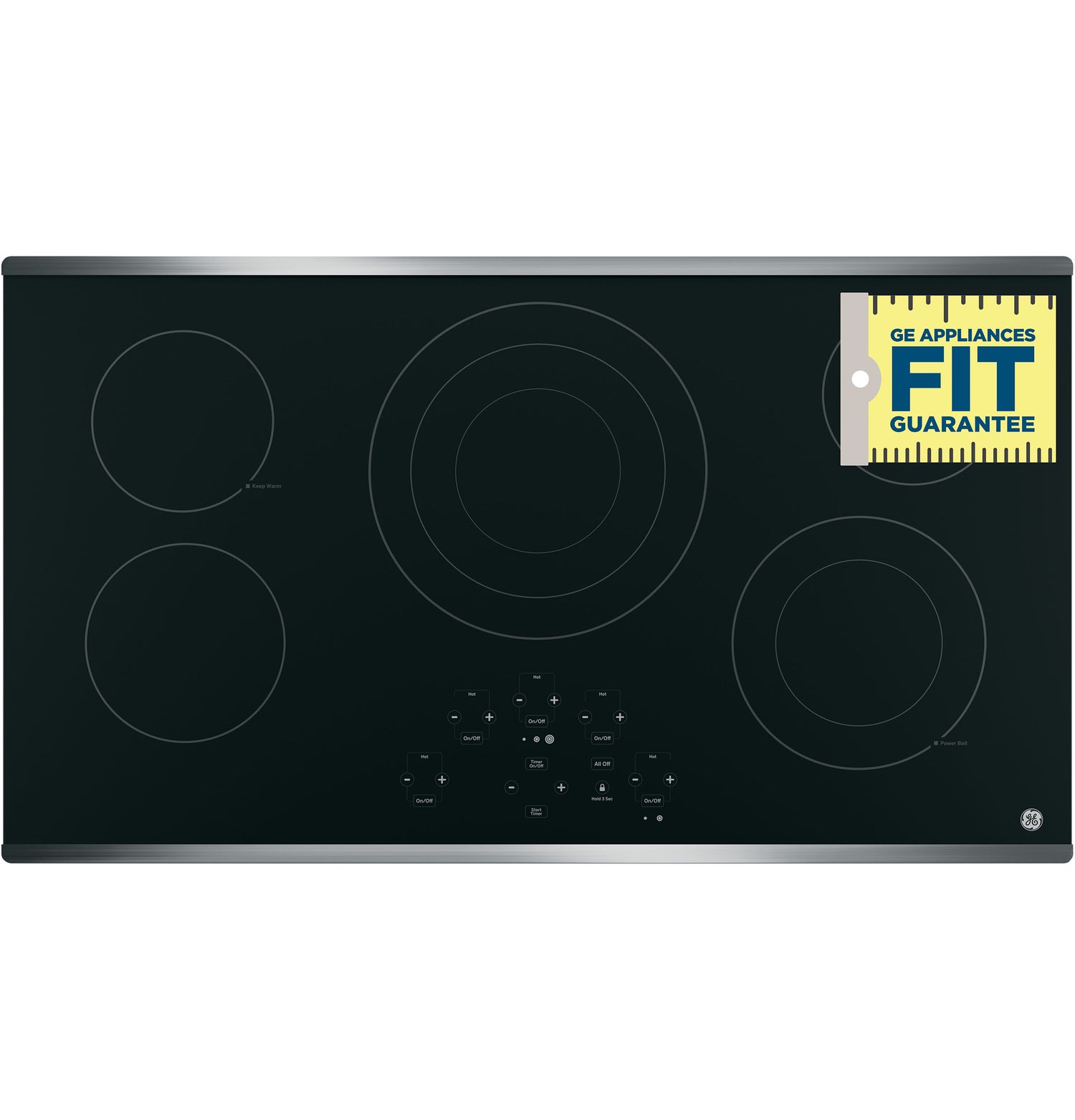

GE(R) 36" Built-In Touch Control Electric Cooktop - (JP5036SJSS)
$1,554.99
$1,710.99
Unit price
/
Unavailable
Couldn't load pickup availability
Product Specs
Product Specs
APPEARANCE | Color Appearance | Stainless Steel on Black |
Control Knobs | Gloss Black | |
Frame Color / Material | Stainless Steel | |
Frameless | Yes | |
FEATURES | Control Location | Front Center |

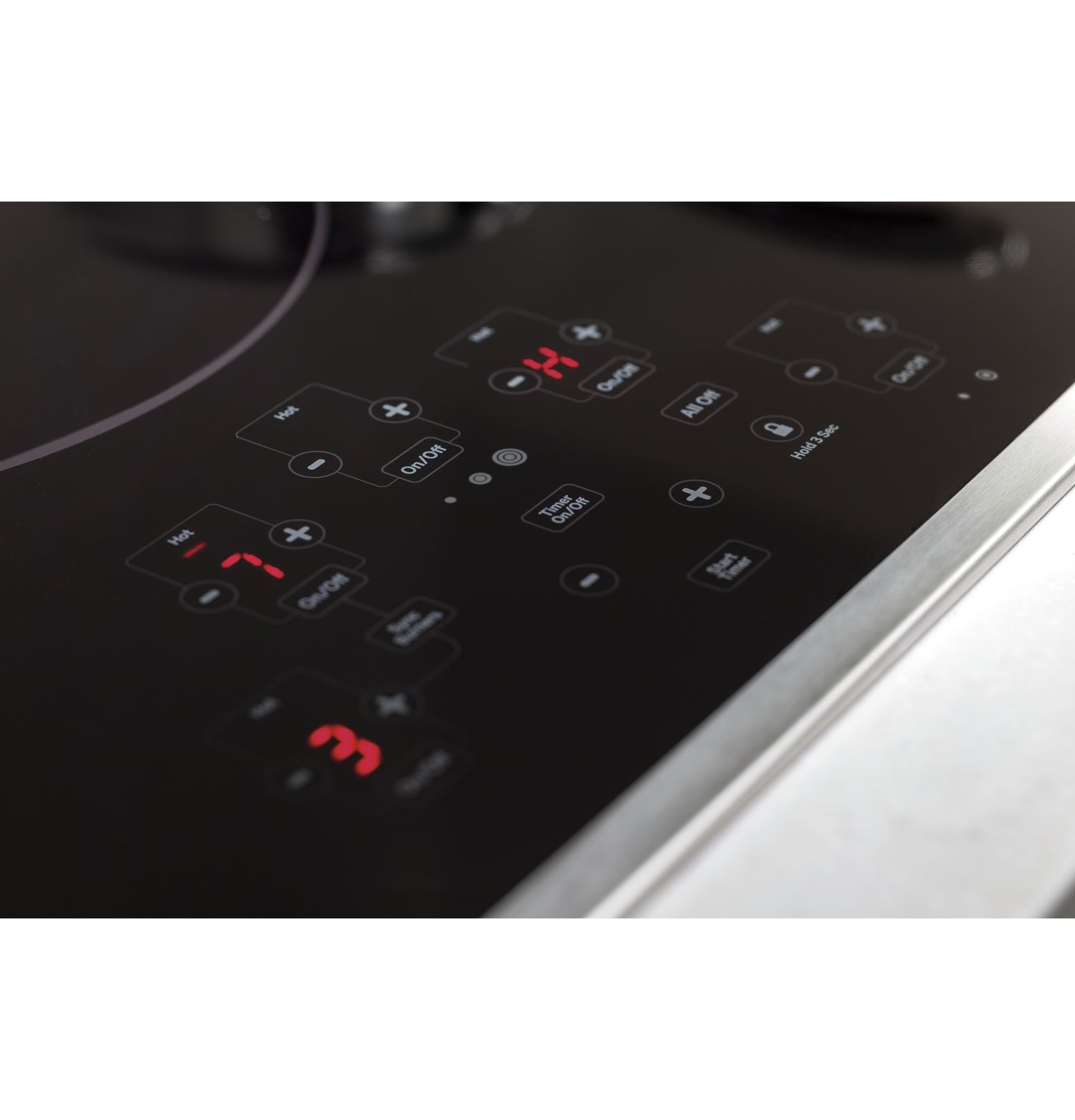

Control Type | Electronic Touch | |
Cooktop Burner Type | 5 Ribbon Smoothtop |
|
Cooktop Control Features | All-Off Control Control Lock Capability Keep-Warm Setting Kitchen timer Melt Setting |
|
Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim | |
Cooktop Type | Radiant Smoothtop | |
Element - Center | 12"/9"/6" 3000W Tri-ring | |
Element - Left Front | 7" 1500W | |
Element - Left Rear | 6" 1200W | |
Element - Right Front | 8"/5" 2400W Power Boil | |
Element - Right Rear | 6" 1200W | |
Fuel Type | Electric | |
Indicator Lights | 5 Hot Surface Red Setting Level Indicators Surface Element "ON" |
|
Melt Setting | Yes | |
Timer | Yes | |
FILTER | App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Control Type | Digital touch | |
App Filter - Cooktop Type | Radiant Smoothtop | |
App Filter - Fuel Type | Electric | |
POWER / RATINGS | Max. Connected Load (kW) at 208V | 7.0 |
Max. Connected Load (kW) at 240V | 9.3 | |
Max. Current Draw (Amps) at 208V | 33.6 | |
Max. Current Draw (Amps) at 240V | 38.8 | |
Recommended Circuit Breaker (Amps) at 208V | 40 | |
Recommended Circuit Breaker (Amps) at 240V | 40 | |
WARRANTY | Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance | |
Warranty Notes | See written warranty for full details | |

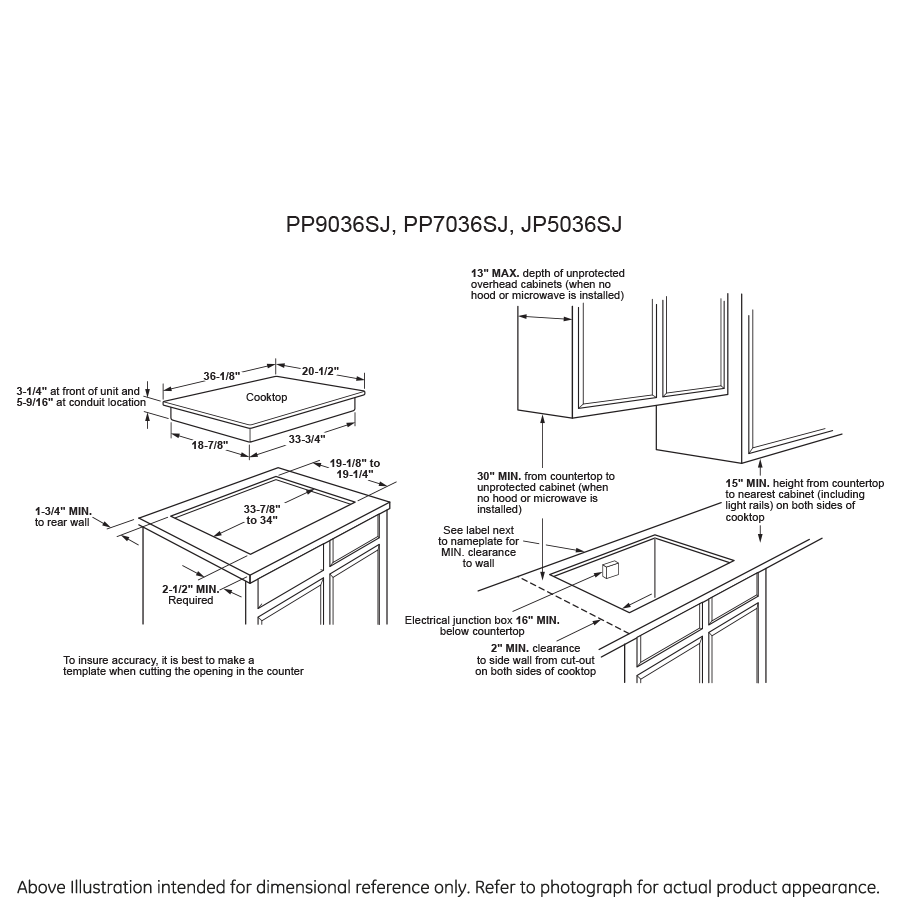

WEIGHTS & DIMENSIONS | Approximate Shipping Weight | 53 |
Cabinet Width | 36 | |
Cooktop Size | 36 | |
Cutout Depth (in) | 19-1/8 | |
Cutout Width (in) | 33-7/8 | |
Net Weight | 46 | |
Overall Depth | 20.5 | |
Overall Height | 5.5625 | |
Overall Width | 36.125 |
